1.Technical Details:

Model: SN-HL-2500C

Wire diameter capacity: Φ3mm-Φ6mm

Works with Raw Matarial Pre-Cut Wires

Machine Speed :0-90 Stroke /min

Transformers -KVA 120KVA

Transformers Units: 6units

Wire mesh width 2500mm

Wire mesh length:as request

Cross Wire Straightening Tolerance

Distance between cross wiresΦ3mm-Φ6mm 50mm (min.)-300mm(adjustable)

Distance between cross wiresΦ3mm-Φ6mm 50mm (min.)-300mm(adjustable)

Overlab Min. 50mm

2.Main Features

1)Automatic feeding for line wire

2)Automatic feeding for cross wire

3)Automatic mesh pulling for panels& the movement incircles

4)Automatic pushing for line wires & adjustable

5)The wire hoppers equipped with wire detection device,themotion will stop when no wires.

6)The transformers adopt water cooling system,prolong theservice life of the machine.

More ……

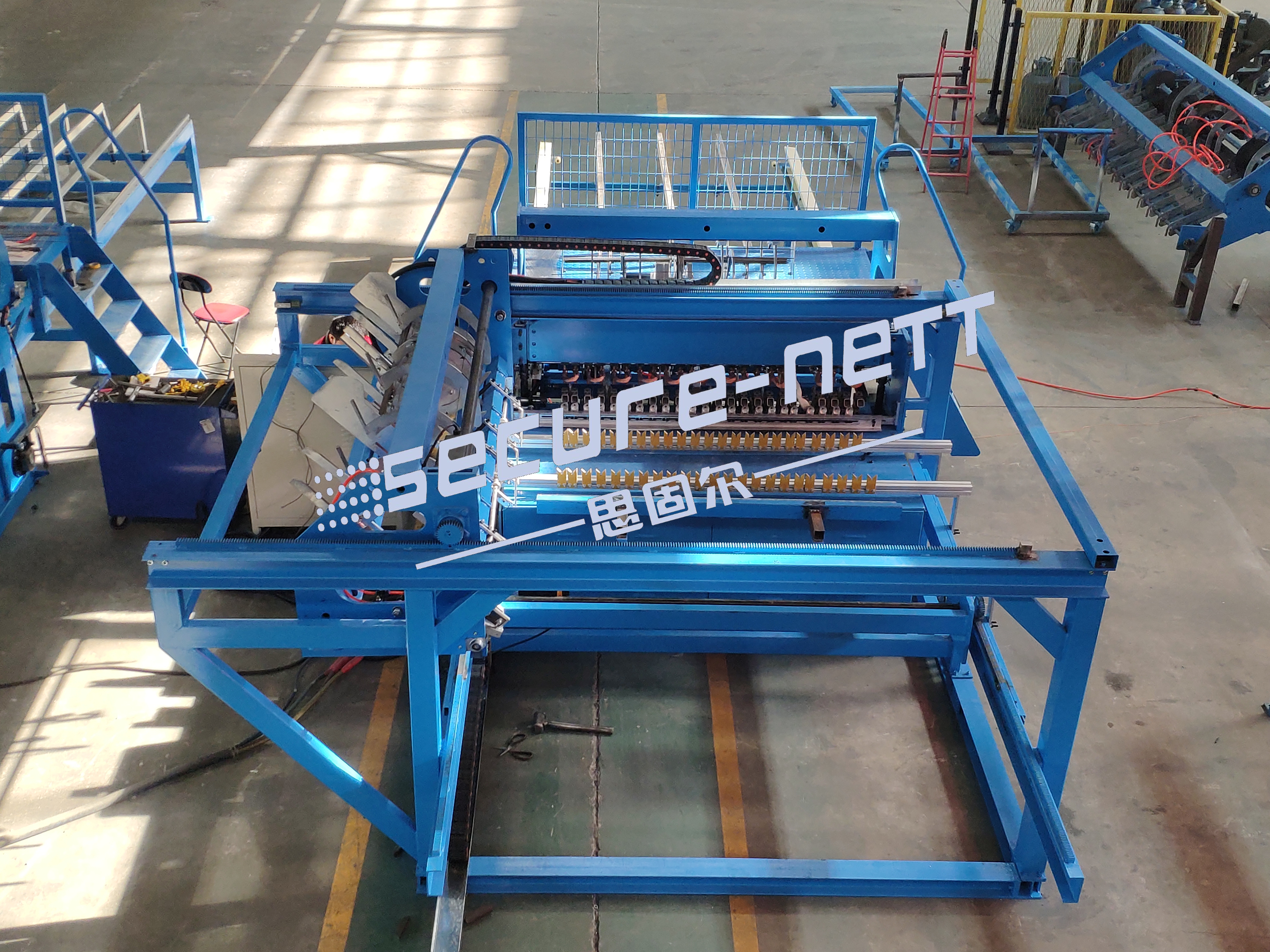

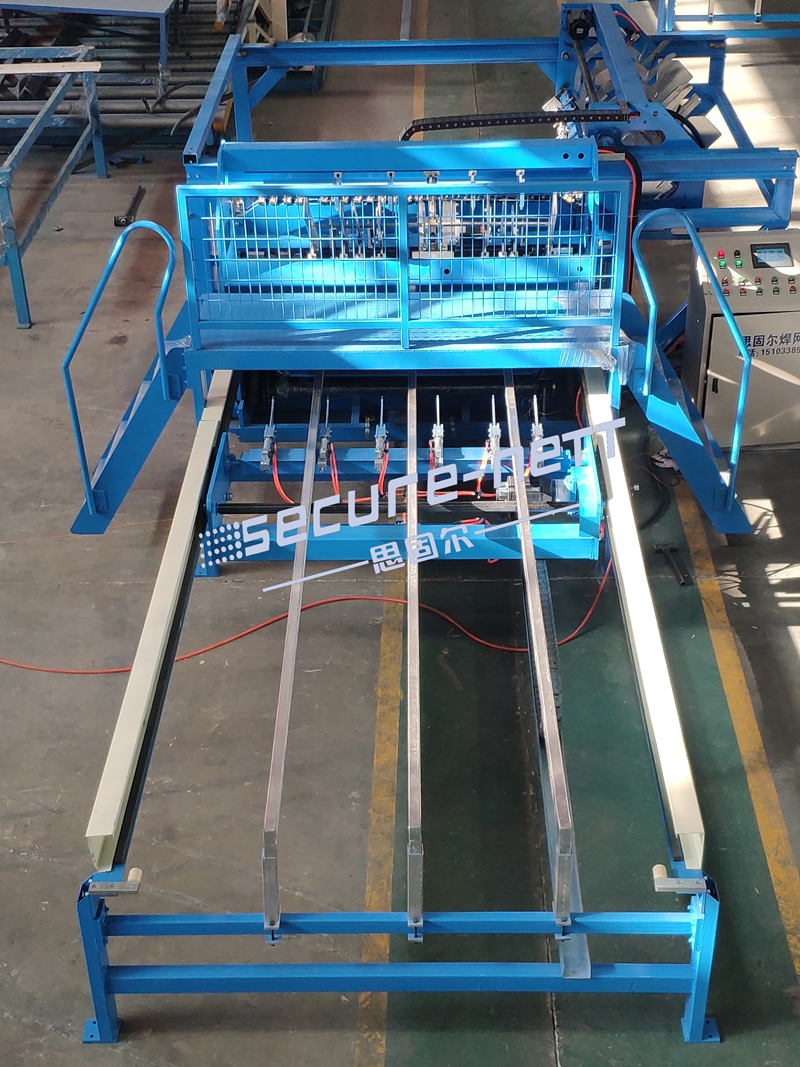

3.Machine picture:

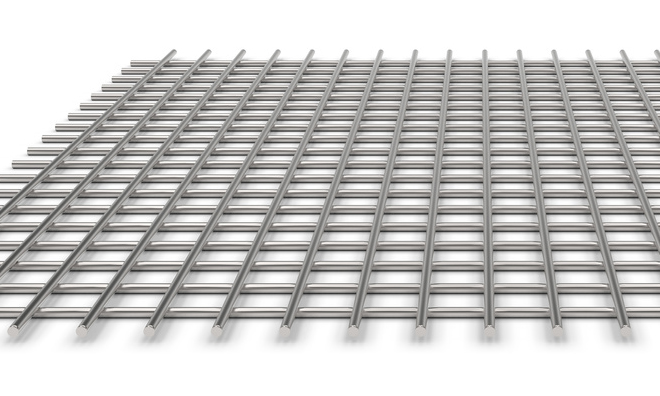

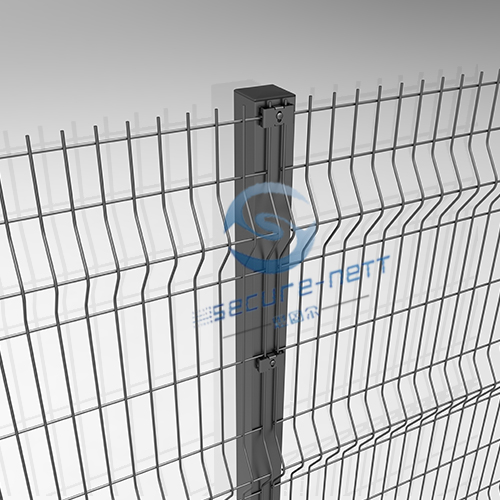

4. Application

5.ISO Certificate

6.Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

7.After-Sales Service

* Training how to install the machine, training how to usethe machine.

* Engineers available to service machinery overseas.

8.FAQ

1.Q:Is your company manufacture or trading company ?

A:We are professional manufacturer and we have more than10 years experience in engineering machine line.

2.Q:Did your machine approved ISO?

A:Our all machines were had approved ISO9001 ago,that willdo best quality for every customer.

3.Q:Can you help us contact the shipping agent in yourloading port?

A:Of course,we have own best shipping forwarder who alwaysprovide the best services&price to us.

4. Q: Can you do OEM?

A: Yes, we can do OEM as client’s requirement.

5. Q: All products have a warranty?

A: YES, Our warranty term is One Year.

6. Q: What about the delivery time?

A: Usually 15-30 days after down payment.
