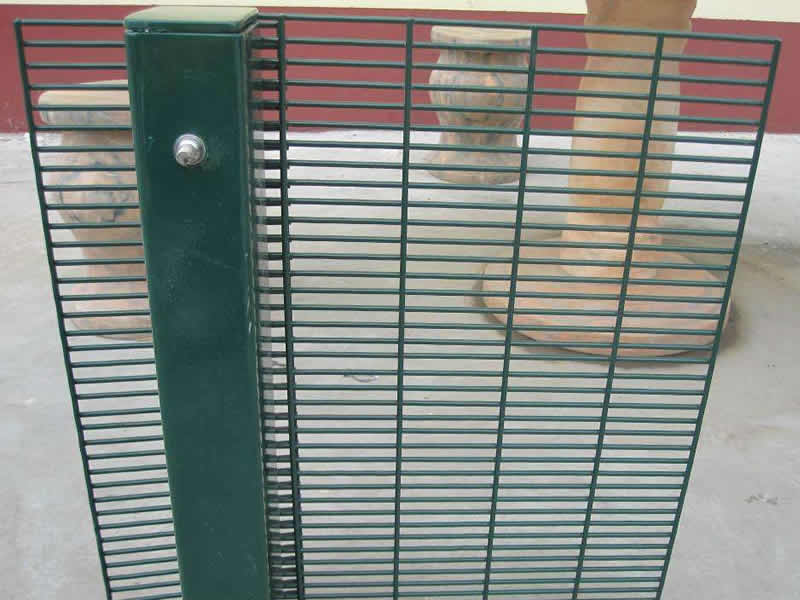

Anti climb high security 358 mesh fence:

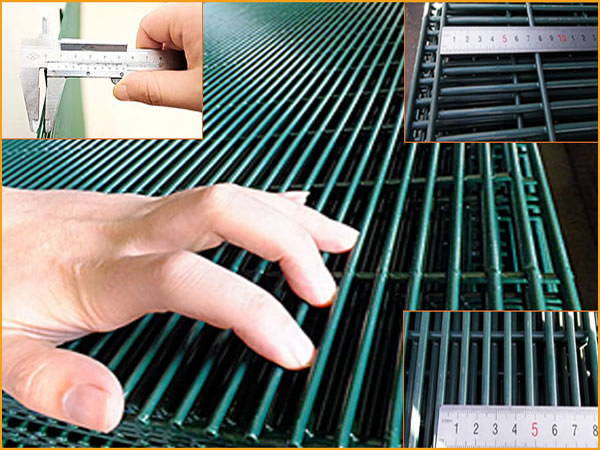

Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 gauge) also known as"prison mesh" or anti-climb fence, is a special fencing panel. This production offers the best value for performance, durability and appearance,"358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.
358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework,coated with heavy zinc or RAL color powder coating.
Features:
1)Anti-climb: Much smaller openings makes it difficult to climb and penetrate.
2) Anti-cut: Robust wire and welded joints make it impossible to be cut by conventional wire cutters.
Processing of Anti climb prison fence:
Material - Straightening & cut wire - Welding - Galvanizing - Powder coating - Packaging
Application:

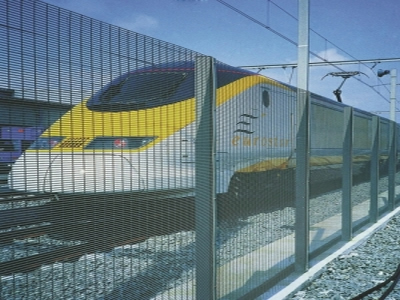

Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.
Specification:
* Material: Q195, steel wire
* Surface treatment:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)
Panel | Posts |
Section | Length | Total number of fixings |
Height | Height xWidth |
2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | 25 |
3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 14 | 26 |
