| Material thickness: | Max.1.0-6mm |
| Punching speed: | 55-300 |
| Length of Mesh: | max20-200 |
MODEL:SN-GB-T
Product Description

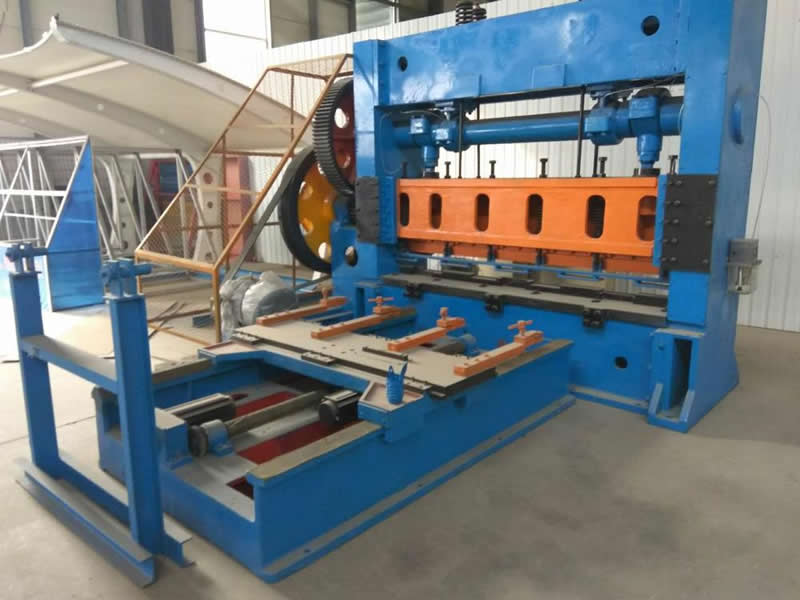

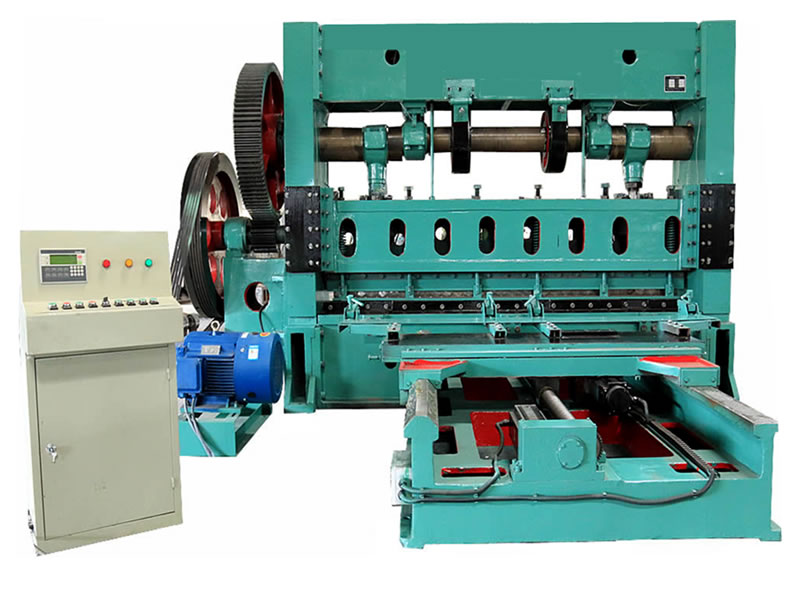

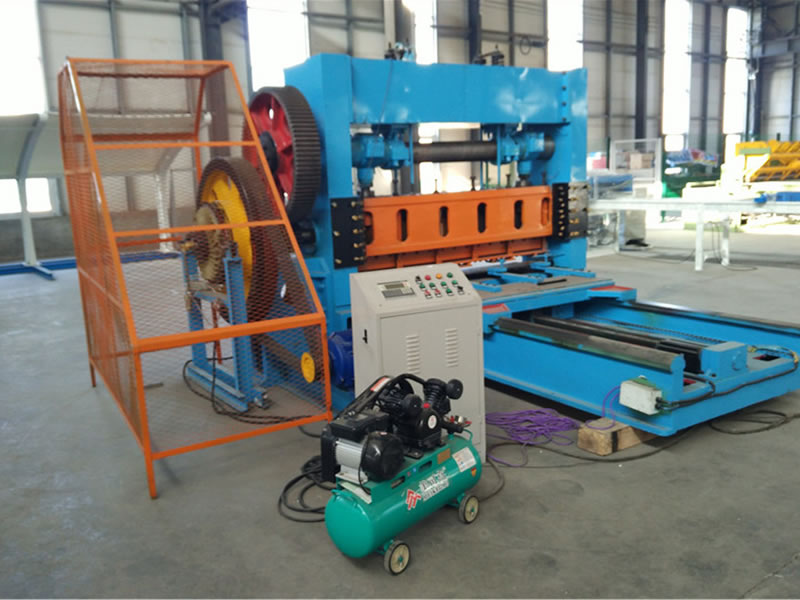

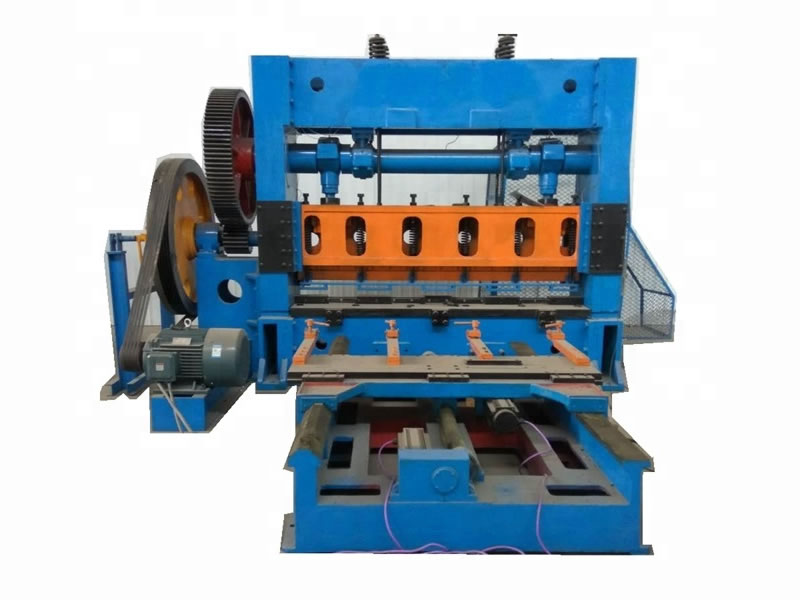

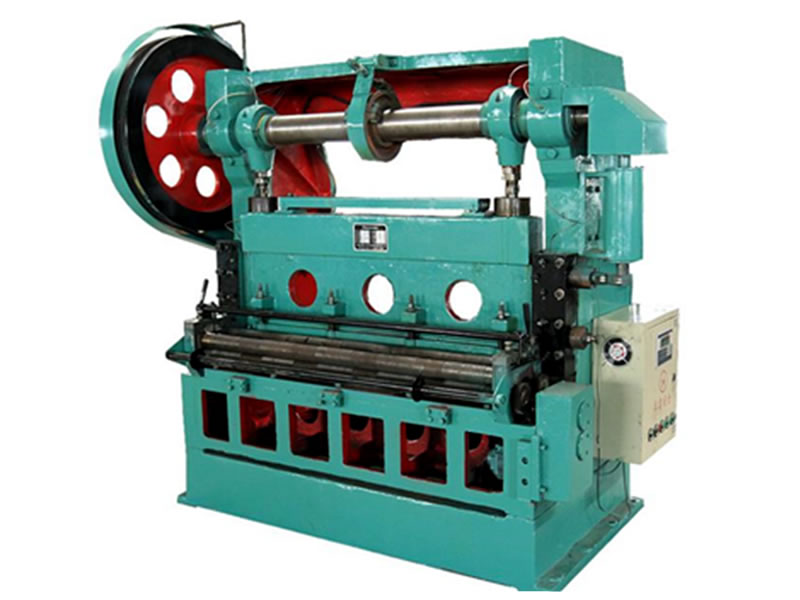

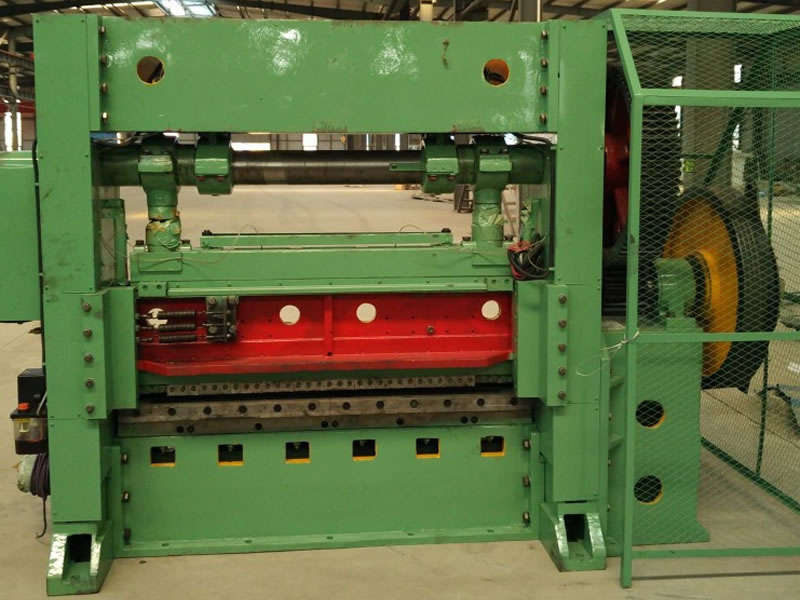

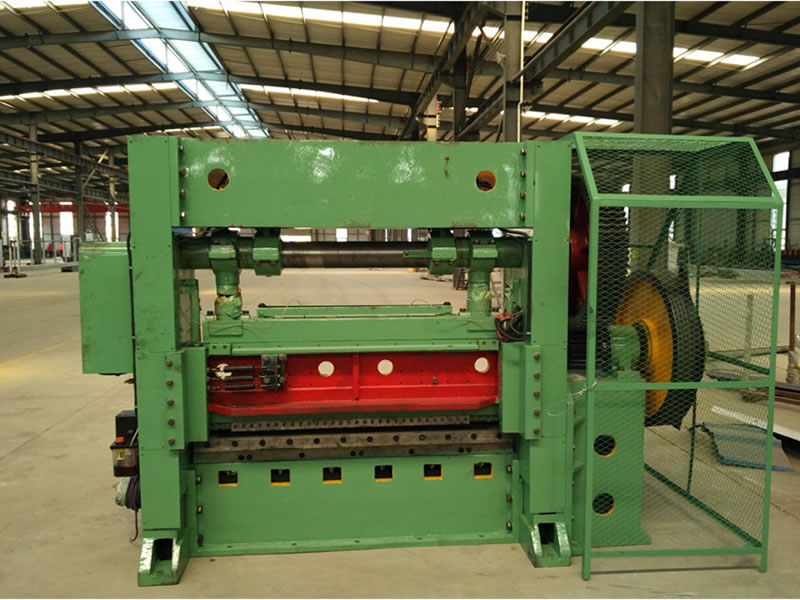

steel expanded metal mesh machine adopts mature technologies of the past as well as new technology, such as full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, control ability, stability and safety has been greatly increased. It has reasonable structure, elegant appearance. energy saving.
Suitable material: low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloy sheet, copper sheet, Nickel sheet.
steel expanded metal mesh machinemain parameter
(1) 6.3 steel expanded metal mesh machine
| No | Type | JQ25-6.3 |
| 1 | Material Thickness | Max1.0 |
| 2 | Net Width | Max 600 |
| 3 | Punching Speed | 300 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max20 |
| 6 | Motor Power | 2.2 |
| 7 | Weight | 0.95 |
| 8 | Dimension | 950*570*1780 |
(2) 16T steel expanded metal mesh machine
| No | Type | JQ25-16 |
| 1 | Material Thickness | Max1.0 |
| 2 | Net Width | Max 1000 |
| 3 | Punching Speed | 160 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max30 |
| 6 | Motor Power | 3.0 |
| 7 | Weight | 2.0 |
| 8 | Dimension | 1800*1320*1550 |
(3) 25 steel expanded metal mesh machine
| No | Type | JQ25-25 |
| 1 | Material Thickness | Max1.5 |
| 2 | Net Width | Max 1000 |
| 3 | Punching Speed | 160 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max40 |
| 6 | Motor Power | 4.0 |
| 7 | Weight | 3.0 |
| 8 | Dimension | 1940*1600*2010 |
(4) 40T steel expanded metal mesh machine
| No | Type | JQ25-40 |
| 1 | Material Thickness | Max2.5 |
| 2 | Net Width | Max 1500 |
| 3 | Punching Speed | 80 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max80 |
| 6 | Motor Power | 11 |
| 7 | Weight | 6 |
| 8 | Dimension | 2870*990*2140 |
(5) 63T steel expanded metal mesh machine
| No | Type | JQ25-63 |
| 1 | Material Thickness | Max4.0 |
| 2 | Net Width | Max 2000 |
| 3 | Punching Speed | 67 |
| 4 | Feeding Distance | 0-20 |
| 5 | Length of Mesh | Max 200 |
| 6 | Motor Power | 11 |
| 7 | Weight | 10 |
| 8 | Dimension | 2400*3500*2300 |
(6) 100T steel expanded metal mesh machine
| No | Type | JQ25-100 |
| 1 | Material Thickness | Max6.0 |
| 2 | Net Width | Max 2500 |
| 3 | Punching Speed | 55 |
| 4 | Feeding Distance | 0-20 |
| 5 | Length of Mesh | Max 200 |
| 6 | Motor Power | 15 |
| 7 | Weight | 12 |
| 8 | Dimension | 3600*2500*3000 |
Packaging & Shipping
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
